Torque Specifications for 7.3 Powerstroke Cylinder Head: A Complete Guide

The 7.3L Powerstroke diesel engine is a legend in its own right – a true workhorse known for its robustness, reliability, and immense power. For over two decades, countless Ford trucks have relied on this powerhouse, hauling heavy loads and conquering demanding terrains. Whether you’re a long-time owner, a seasoned mechanic, or embarking on a rebuild project, one aspect of engine maintenance stands paramount: the precise application of torque specifications for 7.3 Powerstroke cylinder head bolts.

Getting the 7.3 Powerstroke cylinder head torque right isn’t just a suggestion; it’s a critical factor that dictates your engine’s longevity, performance, and leak-free operation. Incorrect torque can lead to a cascade of expensive failures, from blown head gaskets to compromised engine integrity. This comprehensive guide will delve deep into the world of 7.3 Powerstroke head bolt torque spec, offering detailed procedures, crucial tips, and the data you need to ensure your legendary engine continues to serve you faithfully for years to come.

From understanding the fundamental science behind torquing to distinguishing between stock bolt procedures and the often-preferred ARP head stud methods, we’ll cover everything. Our goal is to equip you with the knowledge and confidence to approach your 7.3L Powerstroke cylinder head installation with precision, preventing common pitfalls and securing the heart of your diesel beast. Let’s dive into the essential details that will keep your 7.3L running strong.

Quick Answers to Common Questions

Why are the torque specifications for 7.3 Powerstroke cylinder head so critical?

Getting the torque specifications for your 7.3 Powerstroke cylinder head absolutely right is crucial because it ensures an even clamping force, preventing head gasket failures and maintaining engine integrity. Incorrect torque can lead to costly leaks and damage down the road.

What happens if I don’t follow the correct 7.3 Powerstroke cylinder head torque specifications?

Ignoring the 7.3 Powerstroke cylinder head torque specifications can lead to serious issues like blown head gaskets, warped cylinder heads, and coolant or oil leaks. It’s a recipe for engine trouble you definitely want to avoid!

Do I need to replace my cylinder head bolts when dealing with 7.3 Powerstroke cylinder head torque specifications?

Yes, it’s highly recommended to use new head bolts when reassembling the cylinder head, especially for the 7.3 Powerstroke. The original bolts are often Torque-to-Yield (TTY) and stretch during their initial use, meaning they won’t provide accurate clamping if reused with the correct torque specifications for your 7.3 Powerstroke cylinder head.

Are there different torque specifications for 7.3 Powerstroke cylinder head depending on the year?

Generally, the core torque specifications for the 7.3 Powerstroke cylinder head remain consistent across its production years, but it’s always best to consult a specific service manual for your exact model year to confirm any minor variations or sequence updates.

Is there a specific sequence I need to follow for the 7.3 Powerstroke cylinder head torque specifications?

Absolutely! Following a precise tightening sequence is just as important as the torque value itself when applying the 7.3 Powerstroke cylinder head torque specifications. This ensures even pressure across the gasket, preventing warping and uneven clamping.

Why Correct Torque is Non-Negotiable for Your 7.3L Powerstroke

The cylinder head on any internal combustion engine, especially a high-pressure diesel like the 7.3L Powerstroke, is subjected to immense forces. Combustion pressures can reach well over 2,000 PSI, and engine temperatures fluctuate drastically. The cylinder head, secured to the engine block, must maintain a perfect, gas-tight seal to prevent the escape of combustion gases, oil, and coolant. This seal is primarily achieved through the uniform clamping force provided by the cylinder head bolts or studs, tightened to very specific torque specifications for 7.3 Powerstroke cylinder head.

The Science Behind Torque and Clamping Force

Torque, in simple terms, is a twisting force that causes rotation. When applied to a bolt, it stretches the bolt, creating tension. This tension translates into a clamping force that holds the cylinder head firmly against the engine block, compressing the head gasket in between. The beauty of proper 7.3 Powerstroke cylinder head torque is that it distributes this clamping force evenly across the entire mating surface. Too little torque, and the clamping force is insufficient, allowing the head gasket to fail. Too much torque, and you risk overstretching or even yielding the bolts, damaging the threads in the block, or distorting the cylinder head itself. Neither scenario is desirable and both can lead to catastrophic engine failure.

Common Problems Arising from Incorrect Torque

Ignoring or improperly applying the 7.3 Powerstroke head bolt torque spec is a recipe for disaster. The consequences can range from minor leaks to complete engine seizure, costing thousands in repairs. Here are some of the most common issues stemming from incorrect cylinder head torque:

• Head Gasket Failure: This is arguably the most common and expensive consequence. Uneven or insufficient clamping force allows combustion gases, coolant, or oil to escape past the gasket, leading to overheating, loss of power, coolant contamination, or oil in the coolant.
• Coolant Leaks: External coolant leaks can occur around the cylinder head gasket, leading to coolant loss and potential overheating.
• Oil Leaks: Similar to coolant, oil can leak externally or internally, contaminating the cooling system or burning in the combustion chambers.
• Loss of Compression: If the head isn’t sealed properly, combustion gases will escape, reducing engine compression and leading to poor performance, misfires, and reduced fuel efficiency.
• Distorted Cylinder Head or Block: Over-torquing can warp the cylinder head or even damage the threaded bores in the engine block, requiring costly machining or replacement.
• Broken Head Bolts: Exceeding the bolt’s yield strength can cause it to snap, leading to an immediate and severe loss of clamping force.
• Engine Overheating: Failed head gaskets often lead to combustion gases entering the cooling system, creating air pockets, and severely impairing the engine’s ability to cool itself.

Understanding these potential pitfalls underscores the absolute necessity of precision when dealing with your torque specifications for 7.3 Powerstroke cylinder head. It’s not just a number; it’s the lifeline of your engine.

Understanding the 7.3 Powerstroke Cylinder Head Design

To fully appreciate the importance of correct torque, it helps to have a basic understanding of the 7.3L Powerstroke engine’s cylinder head design and the forces it withstands. Introduced in 1994, the 7.3L Powerstroke is an OHV (Overhead Valve), V8, direct-injection turbodiesel engine. Its cast-iron block and cylinder heads are built for durability, but even the strongest materials require precise assembly to function optimally.

Key Components and Their Role in Sealing

The 7.3L cylinder head houses the intake and exhaust valves, fuel injectors, glow plugs, and the combustion chambers. It mates to the engine block, with a multi-layer steel (MLS) head gasket compressed between the two. This gasket is engineered to handle the extreme pressures and temperatures of diesel combustion. The cylinder head bolts or studs are the critical fasteners responsible for maintaining the integrity of this seal. These bolts extend through the cylinder head, through the gasket, and thread into the engine block. The clamping force they exert, derived from the applied torque specifications for 7.3 Powerstroke cylinder head, compresses the gasket, preventing any leaks.

Evolution of Head Bolt Technology: Torque-to-Yield (TTY) vs. Standard Bolts

The 7.3L Powerstroke, like many modern engines, utilizes what are known as Torque-to-Yield (TTY) head bolts. Understanding the difference between TTY and traditional “stretch” bolts is crucial for proper installation:

• Standard Bolts: These bolts are designed to be torqued to a specific value and remain within their elastic limit. They can often be reused a limited number of times, provided they are not stretched beyond their yield point.
• Torque-to-Yield (TTY) Bolts: TTY bolts are designed to be torqued past their elastic limit, into their plastic deformation range, which means they are intentionally stretched or yielded during installation. This stretching ensures a very consistent and high clamping force. However, because they are stretched, TTY bolts are one-time-use items. They cannot be reused, as they have already yielded and would not provide the correct clamping force a second time. Attempting to reuse TTY bolts is a common mistake that leads directly to head gasket failure and is why new bolts are a mandatory part of any 7.3L cylinder head service. The 7.3 Powerstroke head bolt torque spec for TTY bolts involves a specific angular rotation after an initial torque value.

The design of the 7.3L cylinder head, combined with the characteristics of TTY bolts, makes adherence to the precise torque specifications for 7.3 Powerstroke cylinder head an absolute must. Deviation from these specs means compromising the engineered seal, putting your engine at significant risk.

The Official 7.3 Powerstroke Cylinder Head Torque Specifications (Stock Bolts)

When working with stock 7.3L Powerstroke head bolts, remember that they are Torque-to-Yield (TTY) bolts. This means they are designed for a single use. Always replace old head bolts with new ones when performing any service that requires removing the cylinder heads. Reusing TTY bolts is a primary cause of head gasket failure in these engines. The procedure involves multiple stages of torquing and angular tightening, ensuring an even and sufficient clamping force across the head gasket.

Step-by-Step Torque Procedure for Stock 7.3 Powerstroke Head Bolts

Before you begin, ensure your cylinder head and block mating surfaces are impeccably clean and free of any debris, oil, or old gasket material. Use a head gasket surface cleaner and a plastic scraper, avoiding any tools that could scratch the precision-machined surfaces. Lubricate the threads of the new head bolts and the underside of their heads with engine oil or a thread lubricant specified by Ford. This lubrication is critical for accurate torque readings.

Follow this exact sequence and procedure for each cylinder head:

1. Initial Snug: Install all head bolts and hand-tighten them until they are just snug.
2. First Pass (Torque): Using a calibrated torque wrench, tighten all bolts in the specified sequence to 65 lb-ft (88 Nm).
3. Second Pass (Torque): Following the same sequence, tighten all bolts again to 85 lb-ft (115 Nm).
4. Third Pass (Angular Torque): Still following the sequence, tighten all bolts an additional 90 degrees (1/4 turn). This is where the TTY bolt stretches into its plastic range.
5. Fourth Pass (Angular Torque): Finally, follow the sequence one more time and tighten all bolts an additional 90 degrees (1/4 turn).

This multi-stage process ensures a precise and even clamping force. Do not rush any step, and always follow the correct torque sequence diagram for the 7.3L Powerstroke, which typically starts in the center and works outwards in a spiral pattern. A common mistake is to skip one of the angular torque passes, which will lead to insufficient clamping force and eventual head gasket failure.

Data Table: Official 7.3 Powerstroke Cylinder Head Torque Specifications (Stock Bolts)

For quick reference, here are the official torque specifications for 7.3 Powerstroke cylinder head using brand new stock TTY bolts:

Step	Specification (lb-ft)	Specification (Nm)	Notes
1st Pass	65 lb-ft	88 Nm	Initial Torque
2nd Pass	85 lb-ft	115 Nm	Second Torque Pass
3rd Pass	+90 degrees	+90 degrees	Angular Tightening (1/4 turn)
4th Pass	+90 degrees	+90 degrees	Angular Tightening (1/4 turn)

Remember, this procedure applies to stock 7.3 head bolts torque and requires the use of new bolts only. Ensure your torque wrench is calibrated and use an accurate angle gauge for the angular tightening steps. Precision here is paramount for the integrity of your 7.3 Powerstroke head bolt torque spec.

Upgrading to ARP Head Studs: Different Specs, Superior Performance

For many 7.3L Powerstroke owners, especially those running increased power levels or seeking ultimate reliability, upgrading from stock head bolts to ARP (Automotive Racing Products) head studs is a popular and highly recommended modification. ARP studs offer significant advantages over TTY bolts, primarily due to their superior strength and consistent clamping force.

Why Choose ARP Head Studs for Your 7.3L Powerstroke?

ARP head studs are manufactured from premium-grade alloy steel, heat-treated, and thread-rolled after heat treatment to provide substantially higher tensile strength than factory bolts. Here’s why they are preferred:

• Superior Clamping Force: Studs provide a more accurate and consistent clamping force than bolts because they don’t twist during tightening. The nut is tightened onto the stud, stretching the stud directly.
• Increased Tensile Strength: ARP studs are significantly stronger than stock TTY bolts, making them less prone to stretching or breaking under extreme conditions, such as those found in highly modified or high-boost 7.3L engines.
• Reusability: Unlike TTY bolts, ARP studs are designed to be reused multiple times without compromising their integrity, making future engine services more straightforward.
• Reduced Block Thread Wear: Since the studs are threaded into the block once and remain there, the block threads are subjected to less wear compared to repeatedly threading and unthreading bolts.
• Improved Gasket Sealing: The consistent and higher clamping force provided by ARP studs leads to a much more robust and reliable seal for the head gasket, significantly reducing the risk of failure, even under high boost and cylinder pressures. This is crucial for preventing head gasket failure.

For these reasons, if you’re undertaking a 7.3L Powerstroke engine rebuild or planning power upgrades, ARP head studs 7.3 torque are almost a mandatory consideration.

ARP Torque Specifications and Procedure for 7.3L Powerstroke

The installation and torque procedure for ARP head studs differ significantly from stock bolts. ARP studs utilize a specific lubricant (ARP Ultra-Torque Fastener Assembly Lubricant) which plays a critical role in achieving accurate torque and clamping force. Do NOT use engine oil or other lubricants when torquing ARP studs, as this will lead to inaccurate readings and improper clamping force.

General Procedure for ARP head studs 7.3 torque:

1. Install Studs: Thread each ARP stud into the engine block finger-tight. Do not overtighten or use a wrench; the studs are designed to stretch only when the nut is tightened.
2. Install Cylinder Head: Carefully place the head gasket and then the cylinder head over the studs.
3. Lubricate and Install Washers/Nuts: Apply ARP Ultra-Torque Fastener Assembly Lubricant to the threads of the studs (where the nut will sit) and under the washer face of each nut. Place the washers and then thread on all the nuts.
4. Initial Snug: Hand-tighten all nuts until they are just snug.
5. First Pass (Torque): Following the Powerstroke head torque sequence (center out), tighten all nuts to 70 lb-ft (95 Nm).
6. Second Pass (Torque): Following the same sequence, tighten all nuts again to 120 lb-ft (163 Nm).
7. Third Pass (Final Torque): Following the same sequence, tighten all nuts to the final specification, typically 210 lb-ft (285 Nm).

Important Note on ARP Lubricant: The use of ARP Ultra-Torque Fastener Assembly Lubricant is paramount. The specified torque values are calibrated for use with this lubricant. Using anything else (e.g., motor oil) will result in a much higher clamping force than intended, potentially leading to damaged studs, distorted cylinder heads, or cracked blocks, despite the torque wrench reading the correct value.

Data Table: ARP Head Stud Torque Specifications for 7.3 Powerstroke

Here are the recommended torque specifications for 7.3 Powerstroke cylinder head when using ARP head studs. Always refer to the specific instructions provided with your ARP kit, as specifications can vary slightly based on the stud material and series (e.g., ARP2000 vs. Custom Age 625+).

Step	Specification (lb-ft)	Specification (Nm)	Notes
1st Pass	70 lb-ft	95 Nm	Initial Torque
2nd Pass	120 lb-ft	163 Nm	Second Torque Pass
3rd Pass	210 lb-ft	285 Nm	Final Torque (Using ARP Ultra-Torque Lubricant)

Remember, the 7.3 Powerstroke cylinder head torque with ARP studs is higher than with stock bolts due to the superior strength of the studs and the lubricity of the ARP lube. This increased clamping force is key to reliability in high-performance applications.

Essential Tools and Best Practices for Head Bolt Torquing

Achieving the correct torque specifications for 7.3 Powerstroke cylinder head is not just about knowing the numbers; it’s about using the right tools and following meticulous procedures. Cutting corners here can negate all your efforts and lead to costly failures.

The Right Torque Wrench for the Job

Your torque wrench is your most important tool for this task. There are several types, and each has its pros and cons:

• Click-Type Torque Wrench: This is the most common type. It “clicks” when the set torque value is reached. Ensure it’s a quality, calibrated wrench with sufficient range for the high torque values of the 7.3L Powerstroke (up to 210 lb-ft for ARP studs).
• Beam-Type Torque Wrench: These wrenches provide a visual reading as the pointer moves across a scale. They are generally very accurate if read carefully and don’t require calibration as frequently as click-type wrenches.
• Digital Torque Wrench: Offering high precision, these wrenches display the torque value digitally and often provide audible or visual alerts when the target torque is reached. Many can also measure angles for TTY bolt procedures.
• Angle Gauge: Absolutely essential for TTY bolts (stock 7.3L Powerstroke bolts) as a significant portion of their tightening procedure involves angular rotation. A good quality angle gauge attaches to your ratchet and provides accurate degree readings.

Calibration is Key: Regardless of the type, your torque wrench should be regularly calibrated by a professional. An uncalibrated torque wrench can lead to under- or over-torquing, even if you follow the specs perfectly. For the critical task of 7.3 Powerstroke cylinder head torque, this is non-negotiable.

Preparation is Key: Cleaning and Lubrication

The success of your head gasket seal hinges significantly on the cleanliness and preparation of the mating surfaces and fasteners:

• Surface Preparation: Both the cylinder head and engine block surfaces must be perfectly clean, flat, and free of any nicks, scratches, or old gasket material. Use a plastic or brass scraper to avoid damaging the surfaces. A fine abrasive pad (like Scotch-Brite) with a suitable cleaner can be used, but avoid aggressive abrasives that might alter the surface finish.
• Thread Cleaning: The threaded holes in the engine block must be clean and free of oil, coolant, or debris. Use a tap (the correct size and pitch) to chase the threads, followed by compressed air to blow out any shavings. This ensures accurate torque readings and prevents hydraulic lock from fluids in blind holes.
• Fastener Lubrication: This is critical. For stock TTY bolts, lubricate the bolt threads and under the head with clean engine oil. For ARP studs, use the specific ARP Ultra-Torque Fastener Assembly Lubricant as directed. Lubrication reduces friction, allowing for a more accurate translation of torque into clamping force. Without proper lubrication, a significant portion of your applied torque can be wasted overcoming friction.

The Importance of Torque Sequence

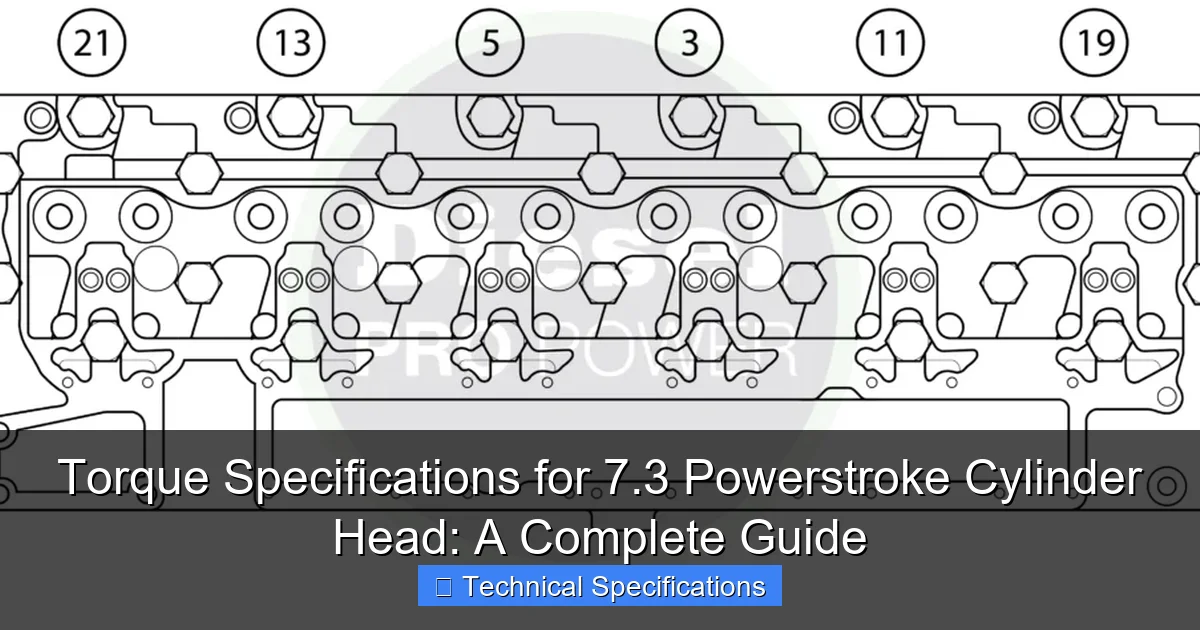

The Powerstroke head torque sequence is designed to progressively and evenly distribute the clamping force, preventing distortion of the cylinder head as it’s tightened down. Typically, the sequence starts from the center bolts and works its way outwards in a spiral pattern. Always refer to your factory service manual or the instructions provided with your head gasket set or ARP studs for the exact sequence. Deviating from this sequence can cause uneven clamping, leading to a warped head and immediate head gasket failure.

Post-Installation Checks and Break-in

Once the cylinder heads are fully torqued and the engine reassembled, do not immediately subject it to heavy loads. Allow for a proper break-in period, which usually involves several heat cycles and limited load driving. During this time:

• Check for Leaks: Keep a close eye on coolant levels, oil levels, and look for any external leaks around the cylinder heads.
• Monitor Temperature: Ensure the engine maintains proper operating temperature without overheating.
• Re-torquing (if applicable): While TTY bolts and ARP studs typically do not require re-torquing after initial installation, always consult the specific manufacturer’s recommendations. Some older engines or specific gasket types might benefit from a re-torque after a few heat cycles. However, for modern MLS gaskets and TTY/ARP fasteners, it’s generally not required or recommended for cylinder head installation 7.3L.

Adhering to these best practices for diesel engine maintenance will not only ensure your 7.3 Powerstroke head bolt torque spec is spot-on but also contribute significantly to the overall health and longevity of your engine.

Conclusion: The Ultimate Seal for Your 7.3L Powerstroke

The 7.3L Powerstroke engine stands as a testament to robust engineering, a true legend in the diesel world. However, even legends require meticulous care, and when it comes to the cylinder heads, precision in applying torque specifications for 7.3 Powerstroke cylinder head is paramount. This isn’t merely a technical detail; it’s the foundation upon which your engine’s reliability, performance, and longevity are built.

We’ve explored the critical differences between stock TTY bolts and the superior performance offered by ARP head studs 7.3 torque, providing detailed step-by-step procedures and essential data tables for both. Understanding the “why” behind these procedures – the science of clamping force, the prevention of head gasket failure, and the preservation of your engine’s integrity – is just as important as knowing the specific numbers.

Whether you’re performing a routine head gasket replacement or embarking on a full 7.3L Powerstroke engine rebuild, remember that the quality of your tools, the cleanliness of your components, and your unwavering adherence to the specified 7.3 Powerstroke cylinder head torque sequence and values will be the ultimate determinants of success. Do not cut corners. Invest in a calibrated torque wrench, understand the unique requirements of TTY bolts versus ARP studs, and follow the specified procedures meticulously.

By respecting these torque specifications for 7.3 Powerstroke cylinder head, you are not just tightening bolts; you are securing the future of your powerful diesel engine. With this comprehensive guide, you are now equipped to ensure your 7.3L Powerstroke continues to deliver the legendary performance it’s famous for, mile after glorious mile. Drive with confidence, knowing your cylinder heads are sealed with ultimate precision.

Frequently Asked Questions

What are the factory torque specifications for the 7.3 Powerstroke cylinder head?

The factory torque specifications for 7.3 Powerstroke cylinder head bolts typically involve a multi-stage process to ensure even clamping pressure. This often includes initial foot-pound values followed by two or more angle-tightening steps, progressively tightening the bolts to their final stretch. Always consult an up-to-date service manual for the most accurate and precise sequence.

Why is it crucial to follow the correct torque specifications for the 7.3 Powerstroke cylinder head?

Adhering to the precise torque specifications for your 7.3 Powerstroke cylinder head is vital to prevent catastrophic head gasket failures, cylinder head warpage, and potential engine damage. Incorrect torque can lead to uneven clamping pressure, allowing combustion gases or coolant to leak, which compromises engine integrity and performance.

Is there a specific torque sequence for the 7.3 Powerstroke cylinder head bolts?

Yes, a specific torque sequence is absolutely essential for the 7.3 Powerstroke cylinder head to ensure even pressure distribution across the gasket and prevent warping. Following the manufacturer’s recommended pattern, usually starting from the center and working outwards in a spiral, is critical for achieving a proper and lasting seal.

Should I use new head bolts when reassembling the 7.3 Powerstroke cylinder head?

For the 7.3 Powerstroke cylinder head, it is highly recommended to use new head bolts, especially if they are Torque-to-Yield (TTY) type bolts. TTY bolts are designed to stretch during their initial tightening and cannot be reliably reused, as they may not achieve the correct clamping force or could even break upon re-torqueing.

Do ARP head studs or other aftermarket bolts use different torque specifications for the 7.3 Powerstroke?

Yes, if you’re installing ARP head studs or other aftermarket bolt kits for your 7.3 Powerstroke cylinder head, their torque specifications will differ significantly from the factory settings. Always refer to the specific instructions provided by the aftermarket manufacturer, as these often involve different torque values, lubrication requirements, and tightening procedures.

What specialized tools are required to properly torque the 7.3 Powerstroke cylinder head?

To correctly torque the 7.3 Powerstroke cylinder head, you will need a reliable torque wrench (preferably a click-type or digital wrench that is calibrated), and an angle torque gauge if the specification includes angle-tightening steps. It’s also wise to have a good quality socket set and a breaker bar for initial loosening.
