How to Bypass Fuel Pump Relay on Chevy Truck: Expert Tips
If you are experiencing issues with your Chevy truck’s fuel pump relay, bypassing it might be a temporary solution to get your vehicle back on the road. The fuel pump relay is responsible for controlling the fuel pump’s operation, and bypassing it can help diagnose whether the relay is the cause of the problem.

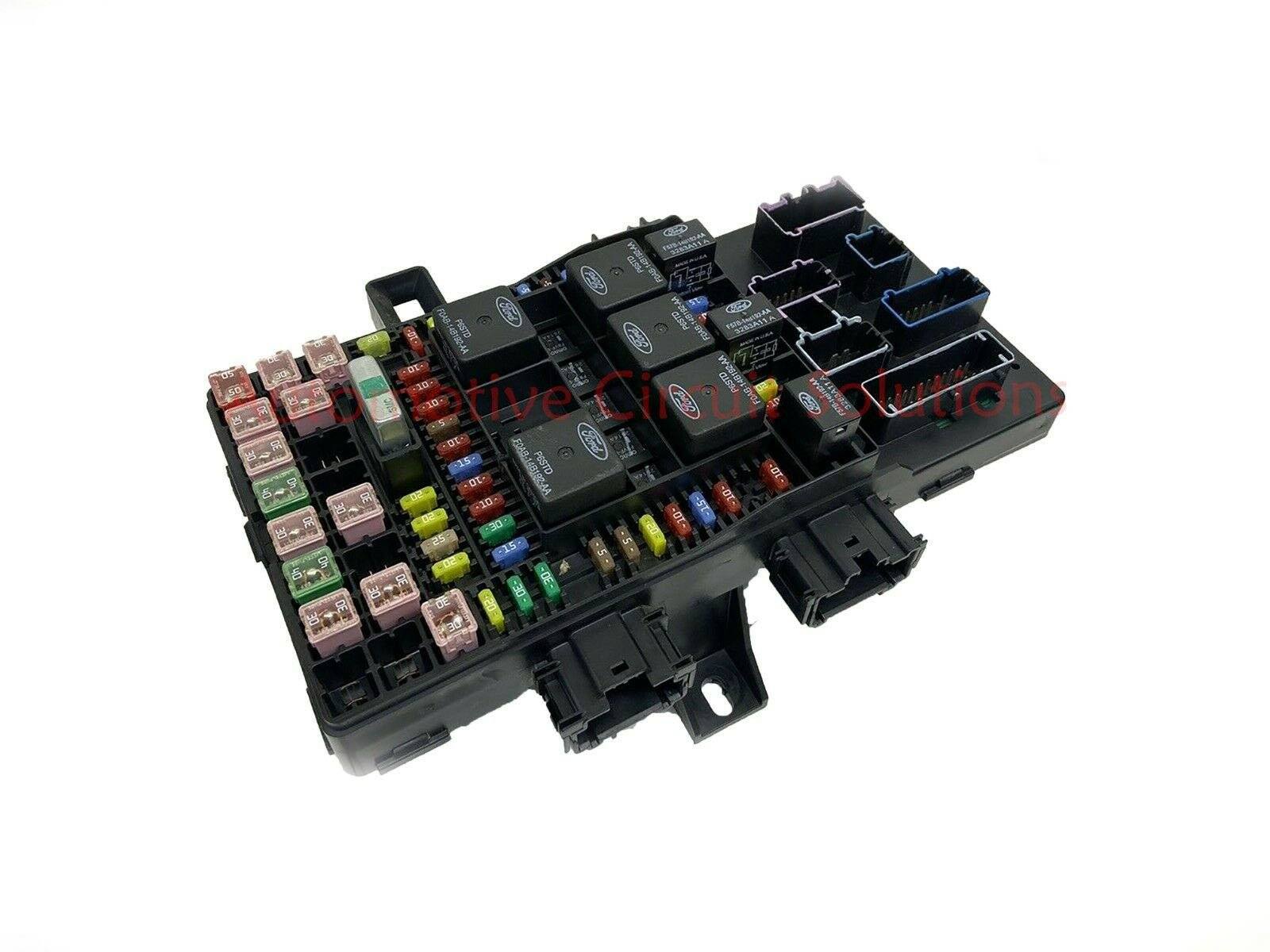

Credit: www.automotivecircuitsolutions.com
Why Bypass the Fuel Pump Relay?
When the fuel pump relay malfunctions, it can prevent the fuel pump from receiving power, leading to a no-start condition or stalling while driving. Bypassing the faulty relay can help determine if the fuel pump itself is working properly. However, it’s important to note that bypassing the relay should only be a temporary measure for diagnostic purposes and should not be considered a long-term solution.
Tools and Materials You Will Need
Before you begin bypassing the fuel pump relay on your Chevy truck, gather the following tools and materials:
| Tools | Materials |
|---|---|
| Socket wrench set | Jumper wire with alligator clips |
| Multimeter | Safety goggles |
| Screwdriver |
Steps to Bypass the Fuel Pump Relay
Follow these steps to bypass the fuel pump relay on your Chevy truck:
- Ensure Safety: Before working on your vehicle, always wear safety goggles to protect your eyes.
- Locate the Fuel Pump Relay: The fuel pump relay is typically located in the engine compartment’s fuse box.
- Remove the Relay: Use a socket wrench to carefully remove the fuel pump relay from the fuse box.
- Identify the Relay Terminals: Identify the terminals for the fuel pump relay in the fuse box. There are usually four terminals labeled 30, 85, 86, and 87.
- Use Jumper Wires: Take the jumper wire with alligator clips and connect it to terminals 30 and 87. This will bypass the relay and directly power the fuel pump.
- Test the Fuel Pump: With the jumper wire in place, turn the ignition key to the “On” position without starting the engine. Listen for the fuel pump operation or use a multimeter to check for power at the fuel pump.
- Reinstall the Relay: Once you have completed the test, turn off the ignition and reinstall the fuel pump relay in the fuse box.
Frequently Asked Questions For How To Bypass Fuel Pump Relay On Chevy Truck: Expert Tips
Can I Bypass The Fuel Pump Relay On My Chevy Truck?
Yes, you can bypass the fuel pump relay on your Chevy truck to troubleshoot fuel delivery issues.
Is It Safe To Bypass The Fuel Pump Relay?
Bypassing the fuel pump relay should only be done temporarily for troubleshooting purposes. It’s not safe for long-term use.
What Are The Risks Of Bypassing The Fuel Pump Relay?
Bypassing the fuel pump relay can cause electrical system damage and pose safety hazards. It’s not recommended unless for troubleshooting.
How Do I Bypass The Fuel Pump Relay On A Chevy Truck?
To bypass the fuel pump relay, locate the relay, remove it, and then connect the power supply directly to the fuel pump.
Conclusion
Bypassing the fuel pump relay on your Chevy truck can help diagnose issues related to the fuel delivery system. However, it is important to remember that bypassing the relay is not a permanent solution and should only be used for diagnostic purposes. If you are not comfortable working with automotive electrical systems, it is always best to consult a professional mechanic for assistance.
By following the steps outlined in this guide, you can safely bypass the fuel pump relay on your Chevy truck and determine if the relay is causing the fuel pump issues.
