How to Check Fuel Injectors With Scan Tool: Quick Guide
Are you experiencing issues with your vehicle’s fuel injectors? Wondering how to check if a fuel injector is bad? It’s essential to ensure that your fuel injectors are functioning optimally for your vehicle’s performance and fuel efficiency. In this article, we will discuss how to use a scan tool to check your fuel injectors and diagnose any potential problems.

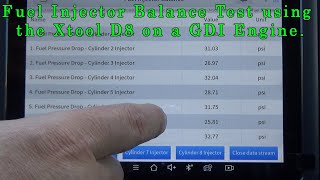

Credit: m.youtube.com
Contents
What is a Fuel Injector?
A fuel injector is a critical component of a vehicle’s fuel system. It is responsible for delivering the precise amount of fuel into the engine cylinders at the right time. When fuel injectors become clogged or malfunction, it can lead to various performance issues such as rough idling, decreased fuel efficiency, and engine misfires.
Using a Scan Tool to Check Fuel Injectors
One of the most efficient ways to check the status of your fuel injectors is by using a scan tool. A scan tool, also known as an OBD II device, allows you to access the vehicle’s onboard computer system and retrieve valuable diagnostic information.
Here’s a step-by-step guide on how to check fuel injectors with a scan tool:
Step 1: Connect The Scan Tool
Start by connecting the scan tool to the OBD II port in your vehicle. The OBD II port is usually located under the dashboard on the driver’s side. Once connected, power on the scan tool and wait for it to establish a connection with the vehicle’s computer system.
Step 2: Access Injector Data
Using the scan tool’s menu, navigate to the option for viewing injector data. This will allow you to retrieve information about the status and performance of each fuel injector in your vehicle.
Step 3: Perform Injector Tests
Once you have accessed the injector data, the scan tool may provide options for performing specific tests on the fuel injectors. These tests may include checking injector balance, flow rate, and electrical continuity.
Step 4: Interpret The Results
After performing the tests, the scan tool will display the results for each fuel injector. Pay close attention to any irregularities or discrepancies in the results, as this may indicate a potential issue with a specific fuel injector.
Common Diagnostic Codes for Fuel Injectors
When using a scan tool to check fuel injectors, it’s essential to be aware of the common diagnostic trouble codes (DTCs) associated with fuel injector problems. Some of the typical codes related to fuel injectors include:
| DTC | Description |
|---|---|
| P0200 | Fuel Injector Circuit Malfunction |
| P0201-P0208 | Injector Circuit/Open Cylinder 1-8 |
| P0210-P0218 | Injector Circuit/Open Cylinder 1-8 |
| P0250-P0258 | Injector Pump Fuel Metering Control “A” Low |
Credit: www.underhoodservice.com
Additional Methods for Checking Fuel Injectors
While a scan tool is a valuable tool for diagnosing fuel injector issues, there are other methods for checking the status of your fuel injectors:
- Injector Testing by Listening: Use a mechanic’s stethoscope to listen to each injector while the engine is idling. A consistent clicking sound indicates proper injector operation.
- Oscilloscope and Amp Clamp: To check the injector itself, you can use an oscilloscope with a back probe and an amp clamp to measure injector performance.
Frequently Asked Questions
Can You Test Fuel Injectors With A Scan Tool?
Yes, you can test fuel injectors with a scan tool to check for fault codes and identify non-functioning injectors. However, it cannot directly test the injectors. For a thorough examination, an oscilloscope and amp clamp are needed.
Will A Bad Fuel Injector Throw A Code?
Yes, a bad fuel injector can trigger a fault code in your vehicle’s system.
How To Test For A Bad Fuel Injector?
To test for a bad fuel injector, use a car scanning tool like an OBD II device. It can detect injector faults.
What Is The Proper Way To Test Fuel Injector Flow?
To properly test fuel injector flow, use a dedicated car scanning tool like an OBD II device. The scan tool can identify any fault codes or non-functioning injectors. Another method is to perform a Cylinder Power Balance Test with the scan tool.
This helps pinpoint faulty injectors for inspection and replacement.
Conclusion
Checking fuel injectors with a scan tool is an essential part of diagnosing and resolving fuel injector problems. By utilizing the diagnostic capabilities of a scan tool, you can efficiently identify any issues with your fuel injectors and take the necessary steps to address them. Remember to consult your vehicle’s service manual or seek professional assistance if you encounter any difficulties during the diagnostic process.
