Engine Timing Tools for 6.0 Powerstroke: Perfect Engine Synchronization
Your Ford 6.0 Powerstroke depends on perfect timing to run smooth. A single tooth off can wreck your valves and pistons fast. Most owners fear the cost of a shop bill for this job. You can handle it yourself with the right gear. Always follow official safety and maintenance guidelines for best results.
Engine Timing Tools for your diesel make this task safe and simple. This guide walks you through every step to lock cam and crank timing right. You will learn what tools to buy and how to use them. Follow along to protect your engine from serious damage.
[
[EZ_UI_BLOCK_0]
]
📌 AT A GLANCE
- ✓Core Concept: Perfect cam and crank alignment keeps valves and pistons from touching.
- ✓Essential Step: Always lock the crank at top dead center before you move the cam.
- ✓Safety Rule: Disconnect the battery and let the engine cool before you start work.
- ✓Efficiency Tip: Label every bolt and sensor so you put them back in the right spot.
Why Timing Accuracy Protects Your 6.0 Powerstroke
Timing controls when valves open and close inside your engine. If the cam and crank fall out of sync, valves can strike pistons. That collision bends valves and cracks pistons in seconds. You avoid that disaster by using proper timing tools.
Applying these proven insights on Engine Timing Tools for helps you avoid costly mistakes. Think of your engine as a dance. Every part must move in step. The crankshaft spins fast. The camshaft turns at half that speed. The timing chain links them both. If one link slips, the dance ends in a crash. For our complete category overview. Core buyer criteria, explore our cornerstone guide to Upgrading 6.0 Powerstroke Engine Components for Performance: Boost Power and Efficiency.
A bent valve costs more than a tool kit. A cracked piston means a full teardown. Shop labor adds up fast. Doing it yourself saves hundreds of dollars. It also gives you full control over the job.
Good timing also improves fuel economy and power output. Your truck runs smoother and lasts longer when everything stays in sync.
- Cam Lock Pins: These pins hold the camshaft at top dead center.
- Crank Timing Pin: This tool locks the crankshaft at zero degrees.
- Degree Wheel: A wheel lets you check timing marks with high accuracy.
- Timing Light: A light helps you check timing while the engine runs.
- Service Manual: A manual gives you the exact specs for your year.
[
[EZ_UI_BLOCK_1]
]

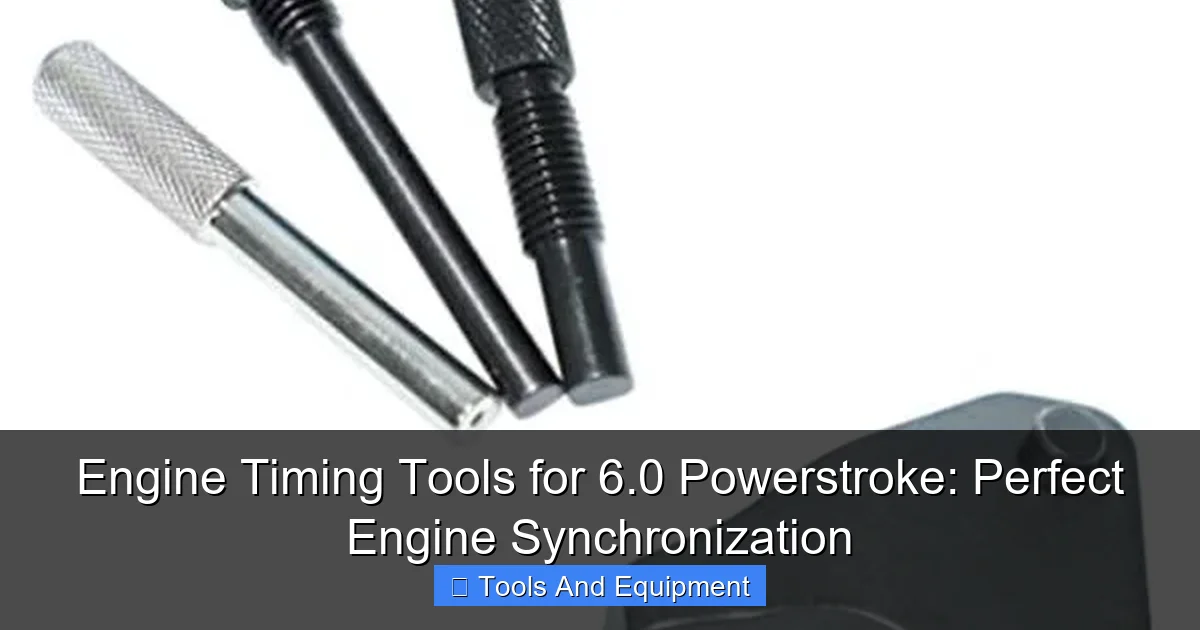

Must Have Engine Timing Tools for 6.0 Powerstroke Jobs
You need a dedicated kit to do this job right. Cheap substitutes slip and cause timing errors. Quality tools cost more but save you from engine rebuilds.
Mark your crank pulley with bright paint before you start. If the timing pin moves, you can see the original mark and reset quickly.
A full kit includes cam locks, crank pins, and alignment bars. Some sets also come with instruction cards for quick reference. Buy from a trusted brand for the best results.
Look for tools made of hardened steel. Soft metal bends under pressure. A bent pin gives a false lock. You may think you are at zero when you are not.
Check the pin diameter before you buy. It must match your engine block holes. A loose fit lets the crank shift. A tight fit will not go in at all.
Read user reviews from other 6.0 owners. Real feedback tells you which kits hold up. Avoid no-name brands with no track record.
- Camshaft Alignment Tool: This bar lines up both camshafts at once.
- Crankshaft Positioning Pin: It locks the crank at top dead center.
- Timing Chain Tensioner Tool: This tool holds tension while you install the chain.
- Socket Set: You need metric sockets to remove covers and bolts.
- Torque Wrench: A wrench ensures you tighten bolts to spec.
- Shop Rag: Clean rags keep oil and dirt out of the engine.
Gather all tools before you start. Nothing stalls a job like hunting for a missing pin mid-repair.
[
[EZ_UI_BLOCK_3]
]
Step by Step Timing Setup for Your Diesel
Start by disconnecting the negative battery cable. Remove the valve covers to access the camshafts. Rotate the crankshaft until the timing mark lines up with zero.
Insert the crank timing pin to lock it in place. Then install the cam lock pins to hold both camshafts. Double check every mark before you tighten anything.
- Disconnect Battery: Cut power to avoid accidental engine starts.
- Remove Valve Covers: Take off covers to reach the camshafts.
- Set Crank to Zero: Turn the crank until the mark hits top dead center.
- Insert Crank Pin: Lock the crankshaft so it cannot move.
- Install Cam Locks: Slide pins into both camshafts to hold them.
- Verify All Marks: Check each alignment mark one more time.
Work slowly and check your work at each step. Rushing leads to costly mistakes.
Before you turn the crank, clean the timing mark area. Use a shop rag and brake cleaner. Grime can hide the real zero mark. A wrong mark throws off the whole job.
Rotate the engine by hand only. Use a breaker bar on the crank bolt. Never use the starter while pins are in place. The starter can bend a pin or break a cam gear.
If the crank pin does not slide in easily, stop. Do not force it. Rotate the crank a small amount and try again. Forcing it can crack the block or bend the pin.
Once both cam pins are seated, wiggle each cam gently. It should not move. If it shifts, the pin is not fully seated. Recheck before you proceed.
Common Timing Mistakes and How to Avoid Them
Many DIY mechanics skip the crank pin and guess top dead center. That small error throws off the entire timing sequence. Your engine may run rough or not start at all.
Another mistake is reusing old stretch bolts. These bolts lose tension and let gears slip under load. Always replace them with new hardware.
Some mechanics forget to mark the crank pulley. Without a mark, you lose your reference if the pin slips. Use paint or a scribe to mark the pulley before you start.
Dirty timing marks cause errors too. Oil or grease can fill the mark groove. You may line up the wrong edge. Clean every mark before you trust it.
Over torquing bolts is another risk. Too much force snaps bolts inside the block. Use a torque wrench and follow the manual specs exactly.
- Skipping Cam Locks: Without locks, cams can shift while you work.
- Wrong Socket Size: A loose socket rounds off bolt heads fast.
- Dirty Timing Marks: Grime hides the real mark and causes errors.
- Over Torquing Bolts: Too much force snaps bolts inside the block.
- Ignoring Service Manual: Each year may have slight spec changes.
Take photos before you remove anything. You can refer back to them during reassembly. Label each wire and hose with tape. It saves time when you put it all back. For complementary picks and expert testing advice, see our guide on Engine Lift Tools for 7.3 Powerstroke Engine Swaps: Easy Engine Removal.
[
[EZ_UI_BLOCK_2]
]
Maintaining Your Timing Tool Kit
Clean your tools after every use. Oil and grime cause pins to stick and rust. Store them in a dry case to prevent corrosion.
Inspect pins for bends or wear before each job. A damaged pin gives false readings. Replace any tool that looks worn or cracked.
Lightly oil steel pins before storage. This prevents surface rust in humid garages. Wipe off excess oil before the next use.
Label your case drawers by tool type. Keep pins separate from bars and bolts. You will find what you need fast.
- Wipe Down Tools: Use a rag to remove oil and dirt.
- Check for Rust: Look for orange spots on metal surfaces.
- Test Pin Fit: Make sure pins slide in and out smoothly.
- Organize by Size: Keep pins sorted so you grab the right one.
- Store in Case: A hard case protects tools from drops.
Well maintained tools last for years and give accurate readings every time.
Best Practices for Perfect Engine Synchronization
Always follow the factory service manual for your exact model year. Do not rely on memory or guesswork. The manual lists torque specs and timing marks clearly.
Work in a clean, well lit area. Good lighting helps you see small timing marks. Keep a fire extinguisher nearby just in case.
Lay out your tools in the order you will use them. This prevents missed steps. It also keeps small parts from rolling away.
Use a magnetic tray for bolts and pins. Steel parts stick to the tray. You will not lose a critical pin in the shop floor.
- Use Factory Specs: Follow manual torque and timing values.
- Double Check Marks: Check alignment before final assembly.
- Replace Stretch Bolts: Use new bolts for timing gear jobs.
- Keep Workspace Clean: Dirt in the engine causes damage.
- Take Your Time: Rushing leads to skipped steps.
Patience pays off with a smooth running Powerstroke.
Timing After Major Repairs
You must reset timing after a timing chain job. You also need to reset it after a camshaft swap. Any job that moves the crank or cams requires a fresh lock.
- If You Replace: If you replace the high pressure oil pump, check timing too.
- Pump Sits: The pump sits near the gear train.
- Bumping It: Bumping it can shift alignment.
After an engine overhaul, rotate the crank by hand for two full turns. Listen for any odd clicks or resistance. If you hear noise, stop and recheck your locks.
Never start the engine with timing tools still installed. Remove every pin and bar first. A forgotten pin will destroy the engine on the first crank.
Expert Tips and Callout Boxes
Pro mechanics mark the crank pulley with paint before removing the belt. This gives you a visual reference if the pin slips. It takes ten seconds and prevents headaches later.
Never force a timing pin into place. If it does not slide in easily, your engine is not at top dead center. Rotate the crank slowly until the pin drops in by hand.
[
[EZ_UI_BLOCK_4]
]
- Another Tip: Another tip is to rotate the engine by hand only.
- Never Use: Never use the starter to turn the crank while timing tools are installed.
- You Could Bend: You could bend valves or break pins.
Keep a spare set of cam pins in your box. Pins are small and easy to drop. A spare saves a trip to the store mid-job.
Use a shop light with a magnetic base. Clip it to the engine block. You get both hands free to work. For complementary picks and expert testing advice, see our guide on 6.0 Powerstroke Engine Stand Tools for Assembly: Get the Job Done Efficiently.
Write down the torque values on a notepad. Tape it to the fender. You will not have to flip through the manual for each bolt.
Gather required tools and clear your work area before starting.
Confirm baseline specs and maker guidelines first.
Complete each stage in order without skipping safety checks.
Run a quick test pass and wipe down key parts after use.
| Tool | Primary Use | Skill Level | Approx Cost |
|---|---|---|---|
| Cam Lock Pins | Hold camshafts at TDC | Beginner | $20 – $40 |
| Crank Timing Pin | Lock crankshaft at zero | Beginner | $15 – $30 |
| Degree Wheel | Check exact timing degrees | Advanced | $40 – $80 |
| Timing Light | Verify running timing | Intermediate | $50 – $100 |
| Full Timing Kit | Complete synchronization | All levels | $100 – $200 |
Frequently Asked Questions
What Are the Best Engine Timing Tools for 6.0 Powerstroke?
A full kit with cam locks, crank pins, and alignment bars works best. Look for steel tools from a known brand. Avoid plastic or weak metal copies.
Can I Time My Engine Without Special Tools?
No. You need pins to lock the crank and cams. Guessing top dead center risks serious engine damage.
How Often Should I Check Engine Timing?
Check timing after any timing chain or gear job. Or else, check it if your engine runs rough or throws timing codes.
What Happens If Timing Is Off by One Tooth?
Valves can hit pistons and bend. You may lose compression and power. In worst cases, you need a full engine rebuild.
Do I Need to Replace Timing Chain Tensioners?
Yes, replace worn tensioners during timing work. A weak tensioner lets the chain slap and jump time.
Where Can I Buy Engine Timing Tools for 6.0 Powerstroke?
Buy from auto parts stores or online diesel power shops. Read reviews before you order.
Final Thoughts and Next Steps
You now know how to use timing tools on your 6.0 Powerstroke. The right gear keeps your valves and pistons safe. Follow each step and check your work twice.
Order your timing kit before your next repair job. Read your service manual and mark your pulley. You can do this job yourself and save money.
Start with a clean workspace and good lighting. Take your time and trust your tools. Your Powerstroke will thank you with smooth power for years.
