5 Top Hall Effect Camshaft Position Sensor Reviews for Optimal Engine Performance
Ever wonder what keeps your car’s engine running like a well-oiled machine? Beyond the big parts, there are crucial unsung heroes, and the hall effect camshaft position sensor is definitely one of them. This clever little device plays a vital role in your engine’s precise timing, ensuring everything from fuel injection to spark plug firing happens at just the right moment.
But what exactly is a hall effect camshaft position sensor, and why is it so important? Simply put, it’s a type of electronic sensor that uses the “Hall Effect” – a phenomenon where a voltage difference is produced across a conductor when a magnetic field is applied perpendicular to the current. In your car, this translates into accurate, real-time data about your camshaft’s rotational speed and position, which the Engine Control Unit (ECU) uses for critical engine management. Compared to older, inductive sensors, Hall Effect sensors offer a more precise digital signal, leading to better fuel efficiency, smoother idling, and improved overall vehicle performance.
Whether you’re looking for a direct replacement for your vehicle, a component for a custom build, or just curious about this essential technology, we’ve got you covered. We’ve dug into the market to bring you a selection of top-notch Hall Effect sensors and components, highlighting their unique features and benefits. Let’s dive in!
Product Reviews

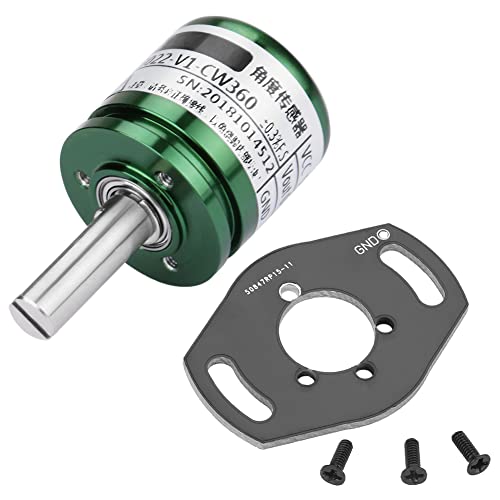

Yuecoom Hall Angle Sensor, 0.088° Resolution 360° Rotatable
This isn’t your average direct-fit automotive sensor, but it showcases the incredible precision Hall Effect technology can offer. The Yuecoom Hall Angle Sensor is a highly accurate, industrial-grade device designed for precise 360-degree angle measurement with an impressive 0.088° resolution. If you’re tackling a custom engine build or need an exceptionally accurate angle sensor for a specialized application where traditional camshaft position sensors might fall short, this robust, contactless unit could be exactly what you need. It’s built to withstand harsh environments, making it a reliable choice for demanding projects.
-
Key Features:
- Linearity of ±0.3% F.S.
- Suitable for strong magnetic field environments with water, oil, vibration, and shock resistance.
- Low power consumption (5V DC supply, 0-5V output).
- Contactless, smooth rotation for easy installation.
- 360-degree, no-dead-angle measurement with excellent dynamic noise performance.
- High-strength, high-toughness, and corrosion-resistant materials for durability.
-
Pros:
- Extremely high resolution and precision for angle detection.
- Designed for durability in harsh industrial conditions.
- 360-degree measurement without dead spots.
- Low power operation.
-
Cons:
- Not a direct plug-and-play automotive hall effect camshaft position sensor.
- May be overkill for standard vehicle applications.
- Requires custom integration for automotive use.
-
User Impressions: Users praise its exceptional accuracy and robust build, often utilizing it in robotics, automation, or custom sensor applications where precise angular feedback is paramount. They appreciate its consistent performance in challenging environments.
HiLetgo 5pcs Hall Effect Magnetic Sensor Module 3144E A3144
For the DIY enthusiast, electronics hobbyist, or student, the HiLetgo 5pcs Hall Effect Magnetic Sensor Module is a fantastic starting point to understand and implement Hall Effect principles. This module features the popular 3144E A3144 Hall Switch Integrated Circuit, which is a foundational component for many magnetic sensing applications. It provides a simple digital voltage signal output based on magnetic induction intensity, making it perfect for prototyping custom speed sensors, position detectors, or educational projects without needing complex circuitry.
-
Key Features:
- Utilizes the Hall Effect Principle for magnetic sensing.
- Semiconductor integrated technology for reliable performance.
- Input based on magnetic induction intensity.
- Outputs a digital voltage signal (ON/OFF).
- Comes in a convenient pack of 5.
-
Pros:
- Excellent value with five modules per pack.
- Ideal for learning and prototyping magnetic sensing circuits.
- Simple digital output is easy to interface with microcontrollers.
- Small size allows for versatile integration.
-
Cons:
- Not a ready-to-install automotive part.
- Requires external components and wiring to function in a vehicle.
- Basic functionality compared to more complex integrated sensors.
-
User Impressions: Hobbyists and educators love these modules for their reliability and ease of use in breadboard experiments and basic projects. They appreciate the bulk pack, which allows for multiple attempts or various applications.
ALLECIN 20Pcs A3144 3144 Hall Effect Sensor OH3144 AH3144E
If you’re deeply into electronics, prototyping, or need a large quantity of basic Hall Effect sensors for various projects, the ALLECIN 20Pcs A3144 sensor pack is an absolute steal. Similar to the HiLetgo, these are the fundamental integrated circuit chips, but you get a generous twenty pieces. They offer superior temperature performance, small size, high precision, and fast response, making them incredibly versatile for everything from simple switches to more advanced speed measurement and position detection systems. Their humanized packaging also makes storage and access a breeze.
-
Key Features:
- Pack of 20 A3144 Hall Effect Sensor chips.
- Supply Voltage: 28 V (confirm before purchasing).
- Storage Temperature Range: -65°C to +170°C.
- Superior temperature performance, small size, high precision, and fast response.
- Widely used in position detection, speed measurement, proximity switches, and magnetic field detection.
- Humanized packaging for easy storage.
-
Pros:
- Exceptional value for bulk purchase.
- Versatile for a wide range of electronic applications.
- Good performance characteristics (temperature, precision, speed).
- Compact size for tight integrations.
-
Cons:
- Raw components, not a finished sensor assembly.
- Requires soldering and circuit design expertise.
- Voltage compatibility needs to be confirmed for specific projects.
-
User Impressions: Professional prototypers and active hobbyists rave about the cost-effectiveness and consistent performance of these sensors. They are a go-to for developing custom solutions where the A3144’s characteristics fit the bill, especially when many units are needed.

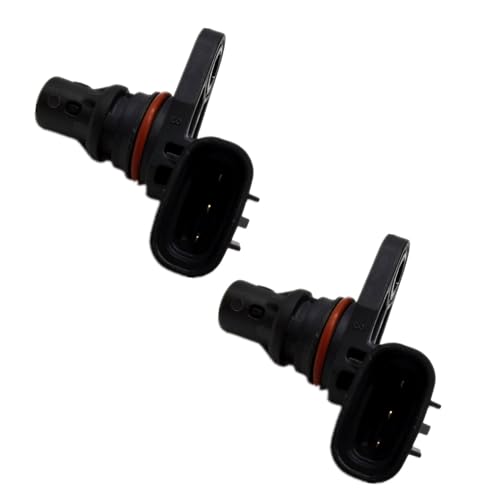

Camshaft Position Sensor Fit for 1999-2007 Chevy Silverado…
Finally, a direct-replacement hall effect camshaft position sensor for popular vehicles! This sensor is designed specifically for a wide range of 1999-2007 Chevy Silverado, Tahoe, Express, Suburban, Avalanche, Corvette, Camaro, SSR, and GMC Sierra, Yukon, Savana, Envoy XL, Cadillac Escalade, and Hummer H2 models. If your vehicle is experiencing issues like hard starting, poor acceleration, a rough idle, or that dreaded “Check Engine” light, a faulty cam sensor could be the culprit. This plug-and-play unit is engineered as a direct OEM replacement, meaning installation is straightforward and it’s built to meet strict quality control standards for extended service life.
-
Key Features:
- Direct fit for numerous 1999-2007 GM trucks, SUVs, and cars (see full compatibility list).
- Replaces common OEM numbers: 12561211, 917-715, PC273, SU1277, etc.
- Obtains camshaft rotation angle and position signals in real-time for the ECU.
- Helps resolve issues like hard starting, weak acceleration, and engine shaking.
- Easy, direct replacement installation – plug and play.
- Professional manufacturing for extended service life.
-
Pros:
- True direct OEM replacement for specified vehicles.
- Addresses common engine performance issues.
- Easy to install for DIY mechanics.
- Broad compatibility within its target vehicle range.
- Comes with dedicated customer support.
-
Cons:
- Only compatible with specific GM models, not universal.
- May not be an exact OEM brand part, though it’s a direct replacement.
-
User Impressions: Vehicle owners are generally very satisfied with this sensor, praising its perfect fit and how it quickly resolves their engine issues like rough idling or check engine lights. Many highlight the ease of installation and the significant cost savings compared to dealership parts.
EPLZON A3144 Hall Effect Sensor 3Pins Magnetic Detector for…
Another great option for those needing raw Hall Effect sensor components, the EPLZON A3144 provides reliable magnetic detection in a compact 3-pin package. What sets this particular offering apart is its robust operating temperature range, from -40℃ to 125℃, making it suitable for applications where temperature fluctuations are common. It boasts small size, high sensitivity, fast response, and high precision, making it a versatile choice for non-contact switches, automatic ignition systems (in custom builds), position/speed detection, and various automation control fields beyond just automotive uses.
-
Key Features:
- Power supply voltage: Vcc 4～24V.
- Operating temperature range: -40℃ to 125℃.
- Storage temperature range: -55～150℃.
- Small size, high sensitivity, fast response, good temperature performance, high precision, and reliability.
- Applications include non-contact switches, automatic ignition, brake circuits, position/speed detection, and industrial automation.
-
Pros:
- Wide operating temperature range for demanding environments.
- High sensitivity and fast response time.
- Versatile for numerous detection and control applications.
- Reliable performance for custom electronic projects.
-
Cons:
- Not a plug-and-play car part; requires integration.
- Similar to other A3144 components, not a complete sensor module.
-
User Impressions: Users appreciate the broad operating temperature range and consistent performance, making it a reliable choice for embedded systems and outdoor applications. It’s often chosen for projects where environmental resilience is as important as detection capability.
Frequently Asked Questions (FAQ)
Q1: What does a Hall Effect Camshaft Position Sensor do?
A: A Hall Effect camshaft position sensor (CMP sensor) monitors the rotational speed and precise position of your engine’s camshaft. It sends this data as a digital signal to the Engine Control Unit (ECU), which then uses it to synchronize critical engine functions like fuel injection timing, ignition spark, and variable valve timing (VVT) for optimal performance and efficiency.
Q2: How do I know if my camshaft position sensor is bad?
A: Common symptoms of a failing camshaft position sensor include difficulty starting your engine (especially when warm), rough idling, engine stalling, poor acceleration, reduced fuel economy, and the illumination of your “Check Engine” light, often accompanied by specific diagnostic trouble codes (DTCs) like P0340 or P0341.
Q3: Can I drive with a bad camshaft position sensor?
A: While your car might run with a faulty camshaft position sensor, it’s generally not recommended. The ECU might use a “limp mode” or default settings to keep the engine running, but performance will be severely compromised, fuel consumption will increase, and there’s a risk of further engine damage due to incorrect timing. It’s best to replace it as soon as possible.
Q4: Is a camshaft position sensor expensive to replace?
A: The cost of replacing a camshaft position sensor can vary. The part itself is generally affordable, especially aftermarket options. Labor costs will depend on your mechanic’s rates and how accessible the sensor is in your specific vehicle. Many DIYers find it a manageable repair, saving on labor costs.
Q5: What’s the difference between Hall Effect and Inductive camshaft position sensors?
A: The main difference lies in their output and robustness. Inductive sensors generate an analog voltage signal from a magnetic field, which can be susceptible to electrical noise. Hall Effect sensors, on the other hand, produce a clean, precise digital ON/OFF signal directly from the magnetic field, making them more accurate, less prone to interference, and generally more reliable, especially at low RPMs.
Q6: Can a dirty camshaft position sensor cause problems?
A: Yes, a dirty or corroded camshaft position sensor can certainly cause issues. Accumulation of dirt, oil, or metallic debris on the sensor tip can interfere with its ability to accurately read the camshaft’s reluctor wheel (the toothed wheel it reads), leading to intermittent signals or complete failure, and thus, engine performance problems.
Q7: Is DIY replacement of a Hall Effect camshaft position sensor possible?
A: For many vehicles, replacing a hall effect camshaft position sensor is a relatively straightforward DIY task. They are often located on the cylinder head or engine block and are secured by one or two bolts, with a simple electrical connector. Always consult your vehicle’s service manual for specific instructions and location details, and ensure the engine is cool before working on it.
The Final Word
The hall effect camshaft position sensor is a small component with a huge impact on your engine’s overall health and performance. Whether you’re in the market for a direct replacement to get your vehicle back on track, or you’re a builder looking for precision components to craft your own custom solutions, understanding this technology is key.
Our diverse list highlights the range of products leveraging Hall Effect technology, from highly precise industrial angle sensors to fundamental electronic components for custom builds, and of course, a direct OEM replacement for popular GM vehicles. Choose the right sensor based on your needs, and enjoy the smooth, efficient ride that comes with proper engine timing.
