How to Use a Multi-Meter on Ford 6.0 Powerstroke: Testing and Troubleshooting

Ford 6.0 Powerstroke engines are famous for electrical quirks. A dead battery or a faulty sensor can leave you stranded fast. Many owners spend too much money on parts they do not need. You can save cash with one simple tool. Always follow official safety and maintenance guidelines for best results.

This guide teaches you how to use a Multi meter on your truck. You will learn to test batteries, alternators, and sensors with ease. Each step uses plain English and clear steps. Follow along to fix your Ford with confidence.

[

[EZ_UI_BLOCK_0]

]

Key Takeaways

📌 AT A GLANCE

  • ✓Core Concept: A Multi meter reads voltage, resistance, and continuity in your engine.
  • ✓Essential Step: Always disconnect the battery before testing high-current circuits.
  • ✓Safety Rule: Wear safety glasses and work in a dry, ventilated area.
  • ✓Efficiency Tip: Test the battery first before checking complex sensors.
  • ✓Quick Win: Clean corrosion from terminals to get accurate readings.

Why Testing Your Ford 6.0 Powerstroke Matters

Multi Why Testing Your Ford 6 0 Powerstroke Matters

The 6.0 Powerstroke relies on many sensors and modules. When one part fails, the engine may not start or run right. Guessing which part is bad wastes time and money. A Multi meter lets you find the real problem fast.

[

[EZ_UI_BLOCK_1]

]

Electrical issues often look like mechanical failures. A low voltage reading can mimic a bad fuel pump or injector. Testing first stops you from replacing good parts. You gain peace of mind and keep your truck on the road. For our complete category overview. Core buyer criteria, explore our cornerstone guide to Upgrading 6.0 Powerstroke Engine Components for Performance: Boost Power and Efficiency.

  • Voltage Basics: Voltage measures electrical pressure in your circuits.
  • Resistance Checks: Resistance shows if a wire or sensor is open or shorted.
  • Continuity Tests: Continuity confirms a complete path for electricity to flow.
  • Battery Health: A weak battery causes many false error codes on the dash.
  • Ground Connections: Bad grounds create weird electrical gremlins throughout the truck.

Start every diagnosis with a solid understanding of these basics. You will avoid costly mistakes and fix issues faster.

Many 6.0 owners swap parts based on a hunch. That habit drains your wallet fast. A meter gives you hard data before you buy anything. You can test a sensor in ten minutes. A new injector costs hundreds of dollars. The math favors testing every time.

Think of your truck’s electrical system like a water pipe. Voltage is the pressure. Resistance is a clog. Continuity is a clear path. If pressure drops, something blocks the flow. Your meter finds the block without guesswork.

Real-world example: A truck cranks slow but starts. The owner buys a new starter. The problem was a corroded ground strap. A five-minute voltage drop test would have shown the issue. That test costs nothing but time.

Another common issue involves the FICM. The Fuel Injection Control Module needs steady power. Low voltage causes rough idle and misfires. Owners often replace injectors instead. Testing FICM power first saves big money.

Cold weather makes electrical issues worse. Batteries lose power in the cold. Wires contract and connections loosen. Testing before winter prevents no-start mornings. A weak battery in summer dies in December.

Keep a log of your readings. Write down battery voltage each month. Track alternator output over time. Trends reveal problems before they leave you stranded.

Gathering Your Tools and Safety Gear

You do not need a fancy shop to test your Ford. A decent digital Multi meter works great for most tasks. You also need basic safety gear to protect yourself while working near the battery.

💡

Expert Pro Tip

Always test voltage at the part, not just at the battery. Voltage drop along wires can starve sensors of power even when the battery is strong.

[

[EZ_UI_BLOCK_3]

]

Set up your workspace in a dry area with good light. Keep metal jewelry off your hands and wrists. This simple habit prevents accidental shorts and sparks near the battery.

  • Digital Meter: Choose an auto-ranging model with clear display and probes.
  • Safety Glasses: Protect your eyes from battery acid and flying debris.
  • Work Gloves: Insulated gloves guard against shocks and sharp edges.
  • Clean Rags: Wipe terminals and probes for clean contact and true readings.
  • Service Manual: Keep the Ford wiring diagram handy for pin locations.

Good preparation makes every test safer and more accurate. Never skip your safety gear, even for quick checks.

Pick a meter with a CAT III safety rating. This rating protects against power surges. Auto-ranging meters pick the right scale for you. Manual meters need you to set the range. Both work fine for car tests.

Buy a set of backprobe pins. These thin pins slide into wire seals. You can test live circuits without cutting wires. Sharp probe tips can pierce insulation. That leads to corrosion later.

Get a small LED work light. Engine bays are dark and cramped. Good light helps you read wire colors and labels. A headlamp keeps both hands free for testing.

Wear safety glasses every time. Battery acid can blind you in seconds. A short circuit can send sparks flying. Your eyes are not worth the risk.

Remove rings and watches before you start. Metal bands conduct electricity well. A ring across a battery terminal causes severe burns. Take them off and put them in your pocket.

Keep a fire extinguisher nearby. Electrical fires start fast near fuel systems. A small Class C extinguisher costs little and saves lives.

Setting up Your Multi Meter Correctly

Before you touch any wire, set the meter to the right function. Most car tests use DC voltage, not AC. Plug the black probe into the COM port. The red probe into the VΩmA port.

Turn the dial to the DC voltage setting, often marked with a V and straight lines. Choose a range above 12 volts for car systems. If your meter auto-ranges, just select DC volts and let it adjust.

  • Probe Placement: Black goes to COM, red goes to voltage or ohm port.
  • Dial Selection: Turn to DC volts for battery and sensor power tests.
  • Range Choice: Use 20V range for most 12-volt automotive circuits.
  • Zero Check: Touch probes together to confirm the meter reads zero ohms.
  • Battery Check: Ensure your meter has fresh batteries before starting.

Double-check your settings before every test. Wrong settings can damage the meter or give false readings.

DC voltage uses a V with a solid line above it. AC voltage uses a V with a wave above it. Car systems run on DC. Home outlets run on AC. Never mix them up.

The COM port is your common ground. The black probe always goes there. The red probe moves based on the test. For volts, use the VΩmA port. For amps, use the 10A port.

Auto-ranging meters adjust the scale on their own. Manual meters need you to pick 20V, 200V, etc. Start high and work down if you use a manual meter. This protects the meter from overload.

Test your meter on a known source first. Check your car battery before testing sensors. If the meter reads 12.6 volts, it works. If it reads zero, check your settings or battery.

Replace meter batteries once a year. Weak meter batteries cause false readings. A dim display is your first warning sign. Keep a spare set in your tool bag.

Inspect your probes before each use. Cracked insulation exposes metal. Exposed metal causes shorts and shocks. Replace damaged probes right away.

Testing the Battery and Charging System

Start with the battery because it powers everything else. A weak battery causes slow cranks and weird sensor codes. Testing takes only a minute and tells you if the battery holds a charge.

Next, check the alternator while the engine runs. A good charging system puts out between 13.5 and 14.5 volts. Low output means the alternator or belt needs attention.

testing Ford 6 0 battery voltage with multi meter
  • Resting Voltage: A healthy battery reads 12.6 volts or higher with engine off.
  • Cranking Voltage: Voltage should not drop below 9.6 volts while starting.
  • Charging Output: With engine running, expect 13.5 to 14.5 volts at the battery.
  • Alternator Diode Test: Set meter to AC volts; any reading means bad diodes.
  • Terminal Resistance: Check for voltage drop across corroded battery terminals.

These readings tell you if your electrical foundation is solid. Fix battery or alternator issues before chasing sensor codes.

Clean the battery terminals first. Corrosion looks like white or green powder. Use a wire brush and baking soda mix. Clean metal gives true voltage readings. Dirty terminals cause false low readings.

Set your meter to 20V DC. Touch the black probe to the negative terminal. Touch the red probe to the positive terminal. Read the display. Write the number down.

Resting voltage below 12.4 volts means a weak battery. Charge it and test again. If it still reads low, the battery may not hold a charge. Replace it.

Cranking voltage tests the battery under load. Have a helper crank the engine. Watch the meter while the starter spins. Voltage should stay above 9.6 volts. A drop below that means a weak battery or bad connection.

Charging output tests the alternator. Start the engine and let it idle. Turn on the headlights and blower motor. This puts a load on the system. Voltage should read 13.5 to 14.5 volts. Lower output means alternator issues.

High voltage above 15 volts is also bad. It can cook your battery and electronics. A faulty voltage regulator causes overcharging. Replace the regulator or alternator.

The diode test checks alternator health. Set your meter to AC volts. With the engine running, probe the battery terminals. Any AC reading means bad diodes. Good alternators block AC current. Bad diodes let AC through and damage electronics.

Voltage drop testing finds hidden resistance. Set your meter to DC volts. Probe across a connection while the circuit runs. A reading above 0.1 volts means resistance. Clean or replace the connection.

Test the main ground strap too. Probe from the battery negative post to the engine block. Crank the engine. Any voltage drop over 0.1 volts means a bad ground. Clean the mating surfaces.

Checking Sensors and Wiring Circuits

The 6.0 Powerstroke uses many sensors for fuel, oil, and turbo control. A bad sensor sends wrong data to the computer. You can test sensor power, ground, and signal with your meter. For complementary picks and expert testing advice, see our guide on How to Fix 6.0 Powerstroke Hard Acceleration Issues: Troubleshoot and Repair.

First, check for power at the sensor connector with the key on. Then check a good ground. Finally, test the signal wire while the engine runs or the part moves.

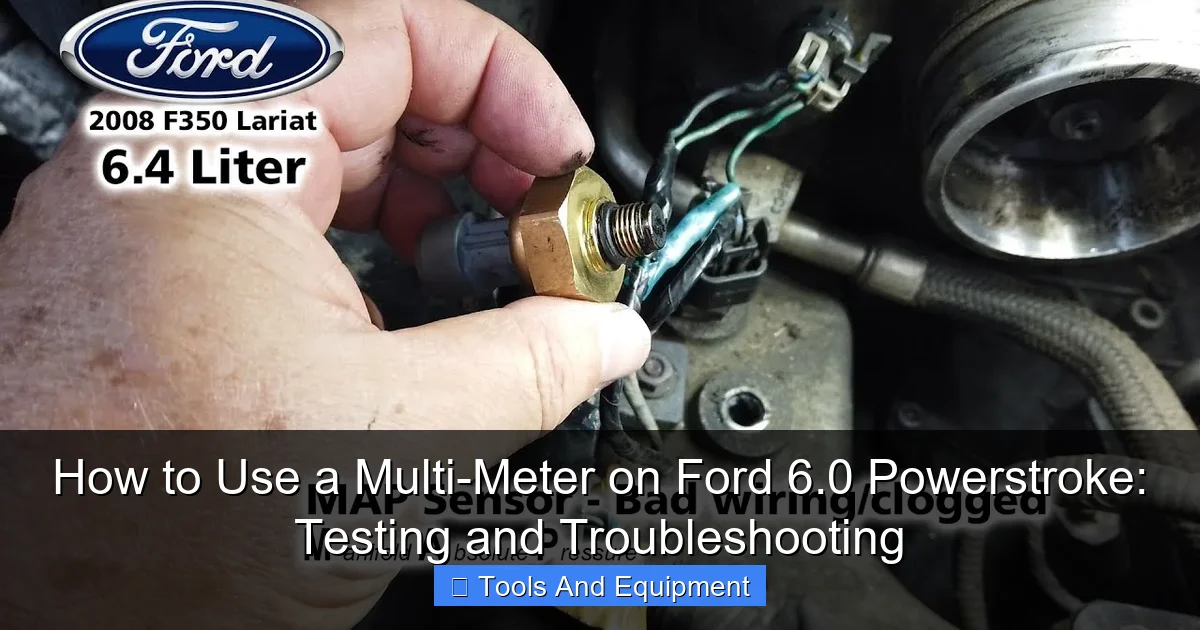

Multi backprobing sensor connector on Ford 6 0 Powerstroke
  • Sensor Power: Backprobe the power wire; expect 5 or 12 volts with key on.
  • Ground Circuit: Test between power wire and ground; should match battery voltage.
  • Signal Voltage: Measure signal wire while sensor operates; values should change smoothly.
  • Resistance Test: Disconnect sensor and measure ohms across its pins.
  • Wiring Continuity: Check for broken wires by testing resistance end to end.

Sensor testing takes patience but saves you from replacing expensive parts. Compare your readings to factory specs in your service manual.

The ICP sensor measures injection control pressure. It lives on the passenger side cylinder head. Unplug the sensor and check the connector. Key on, engine off. You should see 5 volts on the reference wire. No power means a wiring or PCM issue.

The IPR valve controls oil pressure to the injectors. It uses a duty cycle signal. Backprobe the signal wire with the engine running. Voltage should pulse between 0 and 12 volts. Steady voltage means a stuck valve or bad driver.

The EBP sensor reads exhaust back pressure. It sits on the passenger side exhaust manifold. Check for 5 volts reference and a good ground. The signal wire should change with engine RPM. Flat signal means a clogged tube or bad sensor.

The VGT solenoid controls the turbo vanes. It pulses on and off rapidly. Backprobe the signal wire and watch the meter. Duty cycle should change as you rev the engine. No change means a wiring or PCM problem.

Backprobing lets you test without unplugging sensors. Slide a thin pin into the wire seal. Touch your probe to the pin. This keeps the circuit live while you test. Seal the hole with tape after.

Resistance tests need the sensor unplugged. Set your meter to ohms. Touch probes to the sensor pins. Compare the reading to your manual. Infinite ohms means an open circuit. Zero ohms means a short.

Wiring continuity checks find broken wires. Disconnect both ends of the wire. Set meter to ohms. Probe one end, then the other. Near zero ohms means a good wire. Infinite ohms means a break.

Ground tests matter as much as power tests. A bad ground causes weird sensor readings. Probe between the sensor ground wire and battery negative. You should read near zero ohms. High resistance means a bad ground point.

Wiggle testing finds intermittent issues. Backprobe a sensor wire and watch the meter. Wiggle the harness while watching. A jumping reading means a broken wire inside the insulation.

Troubleshooting Common Ford 6.0 Electrical Issues

No-crank conditions often trace back to batteries, starters, or relays. Intermittent stalling can come from bad grounds or failing sensors. Use your meter to follow the power path and find the break.

Check the starter relay, fuse box, and main ground straps first. These simple parts cause many no-start problems. A voltage drop test finds high resistance that a simple voltage check misses.

  • Starter Relay: Swap with a known good relay or test for click and power.
  • Ground Straps: Test resistance from engine block to battery negative terminal.
  • Fuse Panel: Check each fuse for continuity; a blown fuse looks intact sometimes.
  • Voltage Drop: Measure voltage across a circuit while under load to find resistance.
  • ICM Power: Check power and ground to the injection control module.

Work through each system one step at a time. Rushing leads to missed wires and repeated breakdowns.

A no-crank condition starts with the battery. Check resting voltage first. If it is low, charge or replace the battery. Then check cranking voltage. A big drop means bad cables or a weak battery.

Test the starter relay next. Locate it in the fuse box under the hood. Swap it with a similar relay. If the truck starts, the relay was bad. You can also test for power at the relay socket.

Check the starter solenoid signal wire. Have a helper turn the key to start. Probe the small wire on the solenoid. You should see battery voltage. No voltage means a bad ignition switch, neutral safety switch, or wiring.

Ground straps connect the engine to the chassis. Corrosion builds up where they bolt. Test resistance from the engine block to the battery negative. You should read near zero ohms. High resistance means a bad ground.

The FICM is a common failure point on 6.0 engines. It needs steady 12 volts and good ground. Check power at the FICM connector with the key on. Low voltage causes rough idle and no-start conditions. Many owners replace injectors when the FICM is the real issue.

Volt drop testing finds resistance that voltage checks miss. Set your meter to DC volts. Probe both sides of a connection while the circuit runs under load. A reading over 0.1 volts means resistance. Clean or replace the connection.

Intermittent stalling often traces to the CMP sensor. The cam position sensor tells the PCM when to fire injectors. Check its power, ground, and signal. A bad sensor causes random stalls and no-starts.

The IDM on older 6.0s sends high voltage to injectors. Be careful testing IDM circuits. The voltage can reach 115 volts. Use caution and proper safety gear. Never touch injector wires while the engine runs.

Fuse checks are simple but vital. Pull each fuse and look at the element. A blown fuse looks broken or cloudy. Test with your meter on ohms. Good fuses read near zero. Blown fuses read infinite.

Advanced Diagnostics: Ficm and Idm Testing

The Fuel Injection Control Module drives the 6.0 injectors. It needs clean power and ground to work right. Low FICM voltage causes misfires, rough idle, and hard starts. Testing it prevents costly injector spares.

  • Locate the Ficm: Locate the FICM on the driver side valve cover.
  • Unplug the Main: Unplug the main connector.
  • Check for 12: Check for 12 volts on the power wire with the key on.
  • Check Ground: Check ground on the ground wire.
  • Both Must Be: Both must be present for the FICM to work.

Backprobe the FICM logic power wire. It should read near battery voltage. If it reads low, check the FICM relay and fuse. A weak battery also causes low FICM voltage. Charge the battery and retest.

The FICM sends 48 volts to the injectors. Do not probe injector wires with the engine running. The voltage can shock you. Test FICM output with the engine off and key on. You should see pulse width signals on the injector wires.

FICM flash updates fix many 6.0 issues. Ford released updates to improve cold start and idle quality. A dealer or qualified shop can flash your FICM. This often solves problems that parts swapping cannot. For complementary picks and expert testing advice, see our guide on 7.3 Powerstroke Crankcase Pressure Troubleshooting: Solutions for Your Engine.

The IDM on early 6.0s controls injector firing. It sends high voltage pulses to each injector. Test IDM power and ground first. Then check injector resistance with the harness unplugged. Each injector should read a few ohms.

Injector resistance outside spec means a bad injector. Zero ohms means a shorted injector. Infinite ohms means an open injector. Both cause misfire codes and rough running.

Harness chafing is common on 6.0 engines. Wires rub against the engine and wear through. Inspect harnesses near the valve covers and turbo. Look for bare wires and tape them up. Replace damaged sections if needed.

Best Practices and Maintenance Tips

Keep your Multi meter in good shape for years of steady service. Store it in a dry place and replace batteries when the display dims. Clean probes after each use to prevent corrosion buildup.

Test your truck’s electrical system every few months or before long trips. Catching a weak battery early prevents roadside breakdowns. Record your readings so you can spot trends over time.

  • Meter Storage: Keep in a case away from heat, moisture, and direct sun.
  • Probe Care: Wipe probes clean and check for cracked insulation regularly.
  • Battery Replacement: Change meter batteries yearly or when readings seem off.
  • Regular Testing: Check truck battery and alternator every oil change interval.
  • Record Keeping: Log voltage readings to track battery health over months.

Simple habits keep your tools and your truck ready for anything. A well-maintained meter pays for itself quickly.

Create a upkeep log for your truck. Record battery voltage, alternator output, and test dates. A notebook in the glove box works fine. Trends show you when a battery is getting weak before it fails.

Test before winter and before summer. Extreme heat stress batteries and connections. A weak battery survives summer but dies in winter. A marginal alternator works in cool weather but fails in summer heat.

Clean your battery terminals twice a year. Use a terminal brush and protectant spray. Corrosion causes resistance and false readings. Clean terminals mean better starts and longer battery life.

Check your ground straps annually. Look for corrosion at the bolt points. Clean the metal to bare steel before reinstalling. Use dielectric grease to prevent future corrosion.

Store your meter in the cab, not the trunk. Extreme heat in the trunk damages meter batteries and LCD screens. A cool, dry spot extends meter life.

Replace your meter test leads every few years. Leads wear out and crack internally. Bad leads cause intermittent readings and frustration. New leads cost little and restore accuracy.

Summary Table: Testing Methods Compared

[

⚠️

Important Safety Note

Never pierce wires with probes unless you seal them afterward. Pierced wires corrode and cause future electrical problems.

[EZ_UI_BLOCK_4]

]

[

[EZ_UI_BLOCK_2]

]

📋 Quick Action Blueprint

Step-by-Step Workflow: How to Use a Multi-Meter on
⏱️ Prep: 5 Mins✓ Beginner Friendly
01Prep Your Workspace

Gather required tools and clear your work area before starting.

02Check Core Settings

Confirm baseline specs and maker guidelines first.

03Follow Step Sequence

Complete each stage in order without skipping safety checks.

04Inspect & Maintain

Run a quick test pass and wipe down key parts after use.

Test Type What It Checks Best For Typical Good Reading
Battery Voltage Battery state of charge No-start, slow crank 12.6V+ resting
Charging Output Alternator performance Battery dies while driving 13.5-14.5V running
Sensor Power Supply voltage to sensor Sensor codes, poor running 5V or 12V key on
Ground Test Return path to battery Weird electrical glitches Near 0 ohms
Voltage Drop Resistance in wires/cables Dim lights, slow crank Under 0.2V drop
Continuity Complete wire path Broken wires, blown fuses 0 ohms or beep

Frequently Asked Questions

Can I Test My Ford 6.0 with a Cheap Multi Meter?

Yes, a basic digital Multi meter works for most automotive tests. You do not need an expensive model for voltage and resistance checks. Just make sure it reads DC volts and ohms accurately.

What Voltage Should a Healthy Battery Show?

A fully charged battery should read about 12.6 volts or higher with the engine off. If it reads below 12.2 volts, the battery may be weak or discharged. Charge or replace it before further testing.

How Do I Know If My Alternator Is Bad?

With the engine running, battery voltage should rise to 13.5 to 14.5 volts. If it stays at battery voltage or drops, the alternator or belt likely needs repair. Also check for AC voltage output, which indicates bad diodes.

Can I Backprobe Sensor Wires Safely?

Yes, backprobing lets you test circuits without disconnecting connectors. Use thin probe tips and do not damage the wire insulation. Seal any small punctures with electrical tape afterward.

Why Do I Get Weird Sensor Codes After Testing?

Loose grounds or low battery voltage can trigger false sensor codes. Always clear codes after repairs and test drive the truck. Recheck codes if they return to confirm the real issue.

Final Thoughts and Next Steps

You now know how to use a Multi meter on your Ford 6.0 Powerstroke. Start with the battery and charging system, then move to sensors and wiring. Each test builds your confidence and saves you money on parts.

Keep your meter handy and test regularly to catch issues early. Good electrical upkeep keeps your Powerstroke running strong for years. Grab your meter, open the hood, and take control of your truck’s health today.

Similar Posts
